IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Name: IEC603351 Vacuum Cleaner Hoses CurrentCarrying Hoses Flexing Test Device 5 Station
Brand: Sinuo
Price: 1 USD

Wholesale IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station from china suppliers

Brand Name : Sinuo

Model Number : SN2121-5

Certification : Calibration Certificate(Cost Additional )

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Flexing Angle : 0-180° (Presettable: ±30°, ±45°, ±60°, ±90°)

Flexing Speed : 0-60 cycles/min, presettable

Test Stations : 5 stations, synchronized

Test Count : 0-999999 cycles, presettable

Drive Method : Servo motor + precision reduction gear

Control Method : PLC control, touchscreen operation

Contact Now

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Product information:

This device meets the standard of IEC60335-1:2004,IEC60335-2-2:2009,IEC60312-1:2010.It is used to assess the mechanical performance of vacuum cleaner hoses under left and right flexing.The device uses a motor-driven mechanism to perform reciprocating flexing oscillation testing of the current-carrying hose.

Samples and Limitations:

Vacuum cleaner hoses,Water-suction cleaning appliance hoses,Washing machine water hoses

Equipment Structure and Features:

The reduction motor controls the oscillating structure for reciprocating motion, with left and right flexing angles adjustable directly via the touchscreen. The machine stops automatically after reaching the preset test count.

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

Technical parameters:

Operating Environment	Power supply: AC220V±10% / 50-60Hz Operating temperature: 0-40℃ Humidity: 30%-90%
Control Method	PLC control, touchscreen operation
Test Stations	5 stations, synchronized
Drive	Servo motor + precision reduction gear
Flexing Angle	0-180° (Presettable: ±30°, ±45°, ±60°, ±90°)
Flexing Direction Selection
Flexing Speed	0-60 cycles/min, presettable
Test Count	0-999999 cycles, presettable
Load Weights	10N, 20N
Equipment dimensions	approximately 1300×400×1550 (mm) (W×D×H)
Equipment weight	150kg

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station

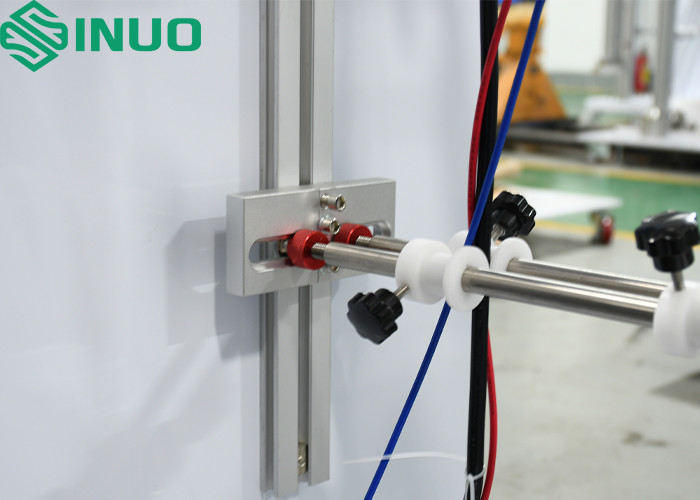

IEC60335-1 Vacuum Cleaner Hoses Current-Carrying Hoses Flexing Test Device 5 Station Images
