Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065

Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065

Product information:

The Temperature Rise Test Corner is designed and manufactured to meet the testing requirements specified in IEC 60335-1 Clause 11.2 and IEC 60065 Clause 7, among other standards. It provides a standardized and controlled environment for conducting temperature rise tests on a wide range of electrical and electronic products.

This test corner is suitable for laboratory use, product development, and certification testing. It features customizable configurations, 48 thermocouple measurement points, and an adjustable top panel to accommodate different device sizes and test conditions.

Key features:

• Standards Compliant: Meets IEC 60335-1 Clause 11.2, IEC 60065 Clause 7, and similar standards

• Customizable Layout: Can be tailored to fit various electrical test samples

• 48 Temperature Measurement Points: Pre-arranged at 100×100 mm intervals

• Precise Thermocouple Integration: K-type thermocouples with diameter < 0.3 mm

• Copper Measuring Sheets: Ø15 mm, 1 mm thick copper sheets for accurate sensing

• Adjustable Top Panel: Height-adjustable from 200 mm to 1500 mm

• Sturdy Construction: 20 mm thick plywood with Berlin black paint (front) and gray film (rear)

• Easy Mobility: Equipped with 4 smooth-rolling wheels for convenient movement

• Clear Point Labeling: Connector sockets correspond to panel test point numbers

Technical parameters:

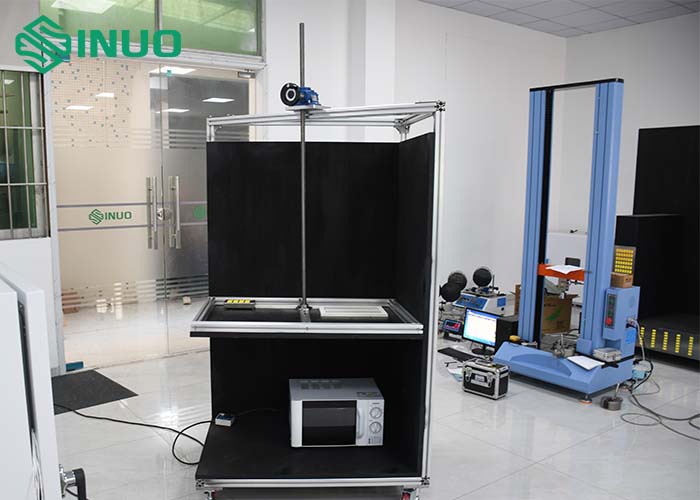

Adjustable Temperature Rise Test Corner with 48-Point K-Thermocouple Grid IEC 60065 Images
