IEC 60335-2-76 Clause 14 Impulse Test Generator 25KV Transient Over Voltage Of Components

Name: IEC 60335276 Clause 14 Impulse Test Generator 25KV Transient Over Voltage Of Components
Brand: Sinuo
Price: 1 USD

Wholesale IEC 60335-2-76 Clause 14 Impulse Test Generator 25KV Transient Over Voltage Of Components from china suppliers

Brand Name : Sinuo

Model Number : SN1104-25KV

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 30 Days

Packaging Details : Plywood case

DC high voltage : 25kV

Maximum output energy : 125J

Storage capacity : 0.47μF

Internal resistance : 12Ω ± 10%

Half wave time : 50 µs ± 20 %

Impact cycles time : 1 ~ 9999

Impact interval time : 10 ~ 999s

Impulse wavefront time : 1.2 µs ± 30 %

Contact Now

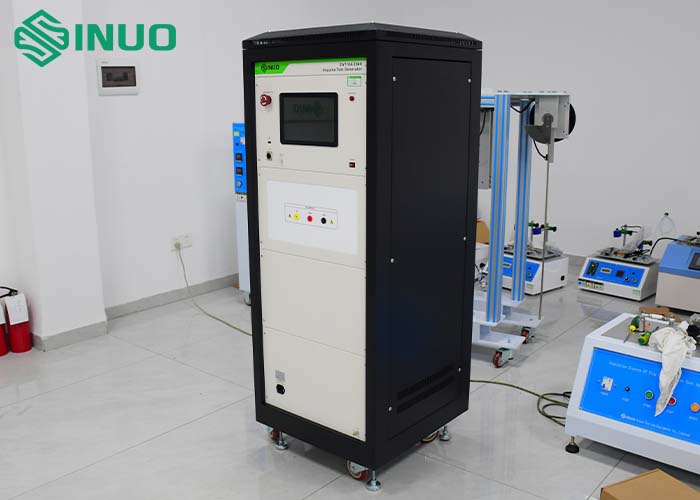

IEC 60335-2-76 Clause 14 Impulse Test Generator 25KV Transient Over Voltage Of Components

Product Information:

Standard: Conforms to IEC60335-2-76 clause 14.

Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.

Technical Parameters:

Model	SN1104-25KV
DC high voltage	Max. 25kV
Maximum output energy	125J
Storage capacity	0.47μF
Instrument internal resistance	12Ω ± 10%, 500Ω ± 10%
Impulse voltage wave	Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % Note: the waveform can be checked by connecting with an external oscilloscope
Impact interval time	10 ~ 999s
Impact cycles	1 ~ 9999
Polarity	Positive / negative, positive and negative alternate

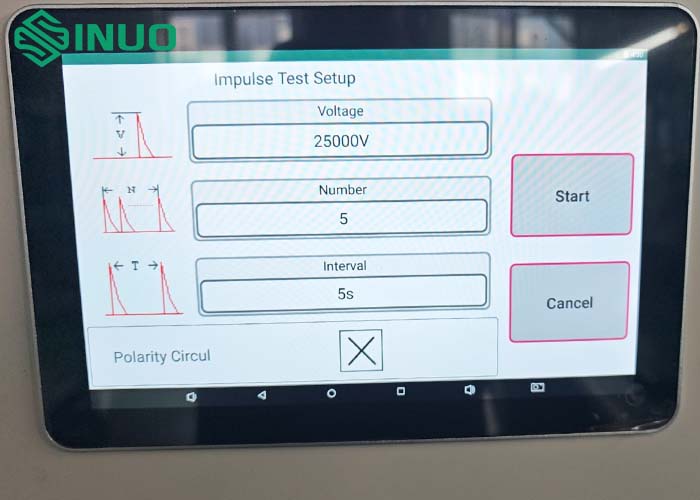

Display and control	10.1” touch screen
Working power source	Rated voltage: 220V±10%, 50/60Hz
