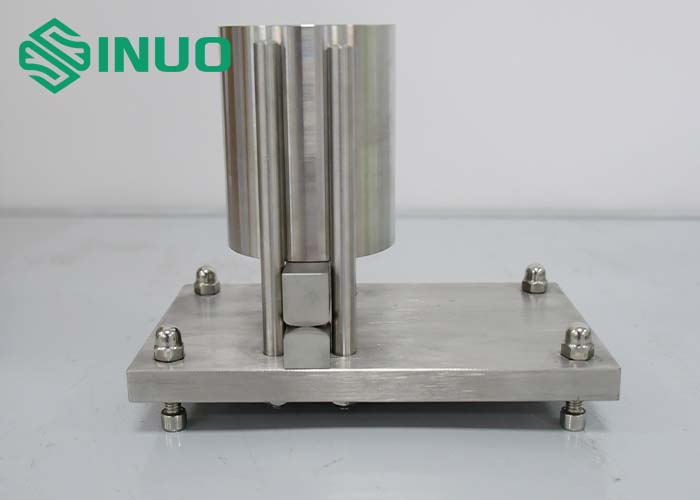

BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat

Name: BS 13631 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat
Brand: Sinuo
Price: 1 USD

Wholesale BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat from china suppliers

Brand Name : Sinuo

Model Number : SN2138

Certification : Calibration Certificate(cost additional )

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 Sets / Month

Delivery Time : 5 days

Packaging Details : Carton

Standard : BS1363-1

Test Station : One station

Compression Force : 19~20N

Material : SUS304 stainless steel

Test Sample : Plugs and sockets

Test Time : 1 min or 1 hour

Cylindrical face : 25 mm radius

Corners rounded : Radius 2.5 mm

Contact Now

BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat

Product information:

The test apparatus conforms to BS1363-1: clause 22.1.3 and figure 23, IEC 60884-1 clause 24.19, 25.4, figure 38, etc.

BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat

Technical parameters:

Compression Weight

Having a cylindrical face of 25 mm radius, corners are rounded with a radius of 2,5 mm

Compression Force

19~20 N

Test Time

1 hour, test at temperature of (70 ± 5) °C

Oven (prepare by the client)

Power supply	AC 220V, 50Hz
Temperature Range	RT+10°C ~300°C
Display Resolution	0.1°C
Temperature Fluctuation	±1°C
Power Rating	2600 W
Temperature Uniformity	±2.5°C
Display Method	LCD screen
Volume / Working Area Size (W* D* H)	50cm60cm*75cm
Outer Dimensions (W* D* H)	70cm71cm110cm
Structure Type	Vertical
Power supply	AC 220V, 50Hz
Temperature Range	RT+10°C ~300°C
Display Resolution	0.1°C

Test method:

1. Before first use, user should familiar with the relevant standards for more effective and

proper using the test apparatus and completing the test.

2. According to the standard requirements for sample pretreatment before use.

3. The pressing plate (small) is placed between the guides (narrow side), cylindrical face is upward, the specimen is placed horizontally on the pressing plate, then place the pressing plate (big) on the specimen and the cylindrical face is downward, finally put the weight on the pressing plate (big), test time is 1 hour.

BS 1363-1 Figure 23 Compression Test Apparatus For The Verification Of Resistance To Heat
