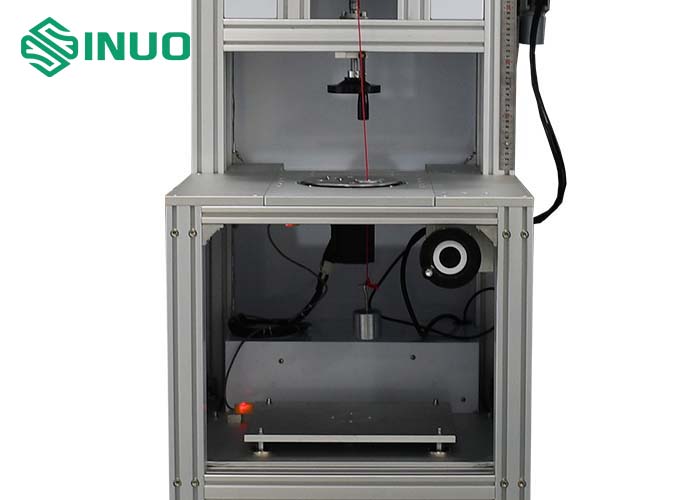

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test

Brand Name : Sinuo

Model Number : SNQC1012B

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 1 set per month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Control method : PLC control

Test Station : Single station

Load Weight : 0.7-109Kg

Height range : 250~800mm

Rotation speed : 5~15 rpm

Test Times : 0-999999times

Mounting plate : 300mm*250mm

Maximum distance : 120mm

Contact Now

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test

Product Information:

This testing device conforms to UL486A-B clause 9.3.2.1, clause 9.3.2.3, clause 9.3.2.4 and table 26 and figure 6, IEC60947-1, etc.

Specimens and restrictions: Screw terminals, threadless terminals and connectors.

Test purpose: To examine whether the screw terminals and threadless terminals can withstand the mechanical stresses that occur during normal use. It is mainly used to judge whether the design and structure of the thread clamping terminal block meet the requirements of not excessively damaging the wire when clamping the wire.

Testing principle: Using guide rail screw structure. The number of tests can be preset before use. When the set value is reached, the machine will automatically stop and sound an alarm signal.

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test

Technical Parameters:

Control and operation PLC control, touch screen operation
Test station Single station
Drive Servo drive
Fixture

1. The centering locking fixture meets the requirements of terminal blocks with length, width and height of 60*70*90mm respectively. The fixture has the characteristics of quick replacement.

2. Equipped with additional mounting plate, size 300mm*250mm, which can be used interchangeably with the centering locking clamp.

3. The maximum distance between the mounting plate and the rotation center is 120mm, adjustable
Rotation speed

5~15 rpm, can be preset on the touch screen,

(UL486A-B requires 9 rpm)
Rotation diameter Adopting double-hole rotating disc, diameter ø75mm
Number of tests/time

1. 0-999999, it will automatically stop when the preset number of tests is reached.

2. The test time can be switched to 0-9999min according to different standard requirements, and can be preset. It will automatically stop when the preset test time is reached.
Load weight

A set of weights can achieve 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 8.2, 11.4, 13.6, 18.2, 22.7, 25, 27.2, 34.1, 36.3, 40.9, 45.4, 49.9, 54.5, 70.4, 81.7, 93.1, 109.

Unit: Kg, weight hook is included in the total weight
Height adjustment range 250~800mm, adjustable, with scale indicator
Height adjustment method Manual adjustment
Busing diameter UL486A-B Configuration: 6.4, 9.5, 12.7, 14.3, 15.8, 19.1, 22.2, 25.4, 28.6, 31.8, 34.9, 38.1, 44.5, 50.8, 54mm

Sample specification selection

(see attached table)

 UL486A-B Table 26
Weight lifting mechanism Equipped with electric lifting mechanism, large-size weight tray to prevent falling

The busing and mass configuring is as following table:

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test
UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test
UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test
