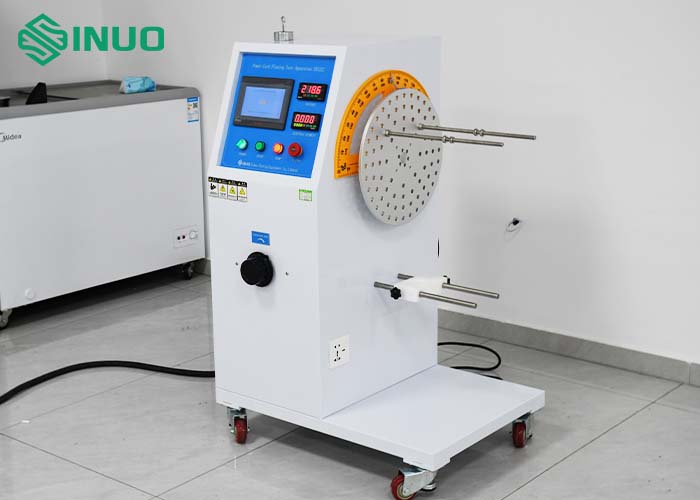

Clause 25.14 Of IEC 60335-1 Power Cord Flexibility Test Equipment PLC Control

Name: Clause 2514 Of IEC 603351 Power Cord Flexibility Test Equipment PLC Control
Brand: Sinuo
Price: 1 USD

Wholesale Clause 25.14 Of IEC 60335-1 Power Cord Flexibility Test Equipment PLC Control from china suppliers

Brand Name : Sinuo

Model Number : SN1112

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Applied Standard : IEC 60335-1

Applied Clause : 25.14

Test Station : Single station

Control Method : PLC control

Flexing Angle : 0-360°, adjustable

Flexing Speed : 0-60 cycles/min

Test Cycles : 0-999999

Loading Weight : 5N,10N

Contact Now

Clause 25.14 Of IEC 60335-1 Power Cord Flexibility Test Equipment PLC control

Product Information:

Standard: Clause 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application: It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.

Test sample: small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.

Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage, etc., can be preset.

Technical Parameters:

Input Power	AC220V, 60Hz
Control Method	PLC control, touch screen operation
Station	One
Drive Mode	Electrical
Flexing Angle	0-360°, preset on the touch screen
Flexing Speed	0-60 cycles/min, can be preset
Test Cycles	0-999999, can be preset
Loading Weight	5N,10N
Loading Voltage	0-250V, can be regulated
Sample judgment	Judge the conduction by current

Common Faults and Treatments:

No.	Fault	Reason	Treatment
1	Turn on the “Power” switch, but the indicator light not turn on	The external power supply is not connected	Please connect to the external power supply
		The fuse is broken	Find out the reason and change the fuse.
		The indicator light damaged	Replace the light
2	Turn on the “Power” switch, Touchscreen not work	The internal DC24V power supply is in problem	Replace the DC24V power supply
2	Turn on the “Power” switch, Touchscreen not work	Touchscreen damaged	Replace the touchscreen
3	Touchscreen no response	Connection to PLC loose	Reconnect
3	Touchscreen no response	Touchscreen damaged	Replace the touchscreen
4	Load power no power supply	Load socket damaged	Replace the socket
4	Load power no power supply	The fuse is broken	Change the fuse
5	Press down “Start” button, but the manipulators do not work.	The display value and preset value of test times are the same	Press “Count Cleared” button
		The E-STOP button is not reset	Release E-STOP button
		There is foreign object in the machine, the machinery is stuck	Remove the foreign object
		It is not under auto test mode	Press “Start” button
		Connection to motor loosen	Reconnect
		Not in starting position	Homing
6	Noise	Swivel speed low or too high	Reset the speed
6	Noise	Connection to motor loosen	Reconnect
