IEC 60884-1 Clause 24.3 Tumbling Barrel Free Fall Test Apparatus Drop Height 500mm
Product information:
Standard: Conforms to IEC 60884-1: 2022 clause 24.3, IEC 60598-1, IEC 60998.1, VDE0620, IEC 60068-2-32, BS1363.1, EN50075, UL60730, IEC60335-1 clause Annex B 21.101, IEC 60065:2014 clause12.3, etc.
Application: This device is suitable for test the drop resistance of plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Test sample: plugs and socket-outlets, surface type mounting boxes, screw glands, gland covers, switch and other electrical accessories.
Feature: This tester can preset test times, automatic stop when set test times completed.
Technical Parameters:
| Rotate speed | 5rpm |
| Drop rate | 10time per min |
| Material | Lateral 1.5mm high quality steel plate, top and bottom 3mm steel pads, sliding surface in 10-19mm wood and beveled section plastic laminate with triangular rubber pads |
| Test times | 0~999999 |
| Drop height | 500mm |
| Barrel number | Single |
| Application | Plug and socket and similar electrical accessories |
| Power supply | 220V,50Hz |
Structure:

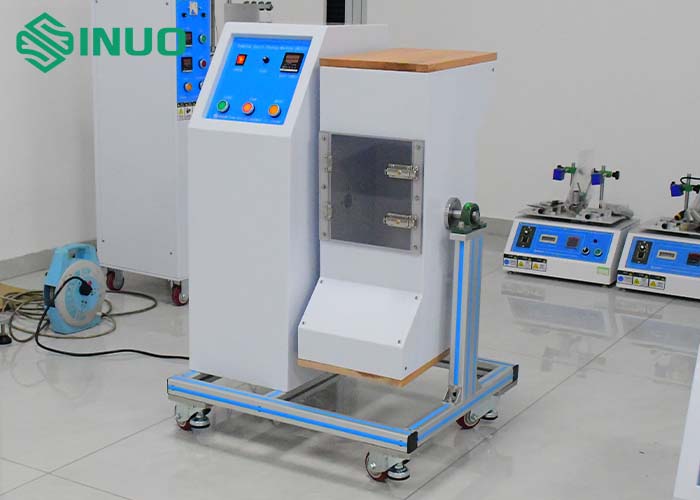

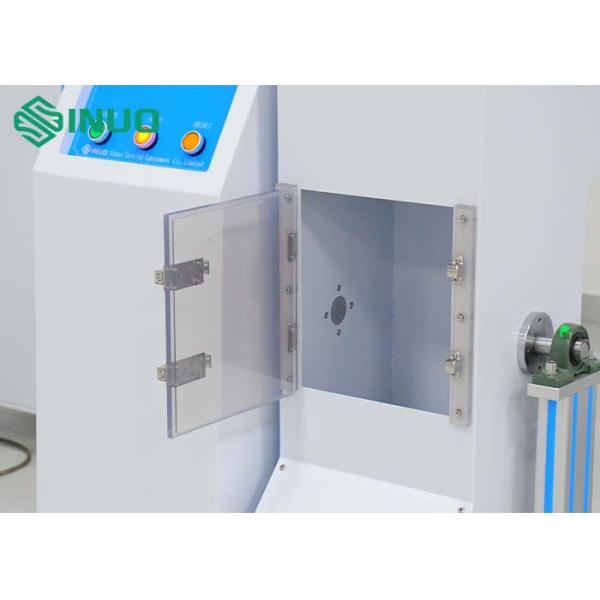

The test equipment consists of an electric control cabinet and a drum. The test time can be set in advance, and the test will stop automatically after completing the pre-set test time.
Equipment size: Approx. 800 × 800 × 1100 (mm) W × D × H
Equipment weight: 100 kg
Use Environment:
Power supply: AC220V±10%/50-60Hz or according to customer's local power requirement
Operating temperature 0-40 ° C, humidity: 30% - 90%
