Brand Name : Sinuo
Model Number : SN2103
Certification : Calibration Certificate (Cost Additional)
Place of Origin : China
MOQ : 1
Price : Customized
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 20 Sets Per Month
Delivery Time : 20 days
Packaging Details : Plywood
Applied Standard : IEC60320-1
Applied Clause : Clause 18.2
Standard Figure : Figure 13
Control : Electrical
Display : Digital
Test Content : Heating resistance

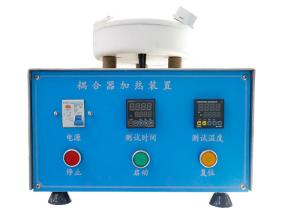

IEC 60320-1 Coupler Heating Resistance Test Device
Equipment overview:
The coupler heating test device is designed and manufactured according to IEC60320-1 clause 18.2 and figure 13. It is used to check the heat resistance of coupler in hot conditions and severe hot conditions.This device is built-in temperature control, precise digital display and durable.
Technical Characteristics:
Test station | Single |
Control method | Electrical |
Heating method | Electrical heating, RT+10~160℃±2℃, can be preset |
Test contents | 10A heat-resistant appliance input socket: test 10A connector, test temperature 120°±2° |
10A severe heat-resistant appliance input socket: test 10A connector, test temperature 155°±2° | |
16A severe heat-resistant appliance input socket: test 16A connector, test temperature 155°±2° | |
Test duration | 0-99 hours and 59 minutes can be preset |
Center distance of coupler | Arranged uniformly in a circle of Φ175mm |
Standard gauge | Standard 10A heat resistance, 10A server heat resistance and 16A server heat resistance are heating gauges |
![]() |
