IEC 60335-2-84 Cushion Internal Wire Bending Testing Machine Household Appliance Test

Name: IEC 60335284 Cushion Internal Wire Bending Testing Machine Household Appliance Test
Brand: Sinuo
Price: 1 USD

Wholesale IEC 60335-2-84 Cushion Internal Wire Bending Testing Machine Household Appliance Test from china suppliers

Brand Name : Sinuo

Model Number : SN1112C-1

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Case

Control Method : PLC control

Test Station : One station

Drive Mode : Servo motor drive

Flexing Speed : 0-30 times/min

Bending times : 0-999999

Loading Voltage : 0-250V

Flexing Angle : 0-90° adjustable

Power supply : AC220V, 50Hz

Contact Now

IEC 60335-2-84 Cushion Internal Wire Bending Testing Machine Household Appliance Test

Product Information:

Standard: IEC60335-2-84:2005 clause 23.3.
Specimen and Limitations: Toilet with heated seat
Test purpose: Used to test the bending resistance of the internal wires entering the appliance part of toilets with heated seat cushions to verify their reliability.

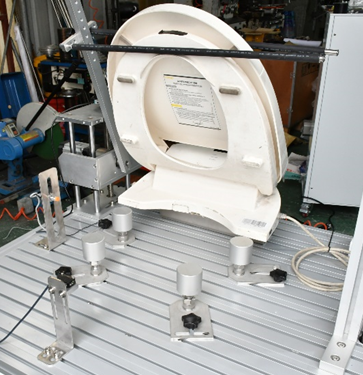

Test principle: The motor drives the turntable to rotate, driving the heated seat cushion to achieve reciprocating opening and closing (bending) movements at a certain speed and angle. It will automatically stop when the number of times is reached or there is no signal when the soft cord is broken.
Equipment structure: The equipment is driven by a servo motor and has special fixtures that can be set at different angles and speeds to match actual sample testing needs.
Equipment dimensions: approximately: 800×800×1300 (mm) W×H×D, equipment weight: 130kg.

Technical Parameters:

Input Power	AC220V±10%/50-60Hz, 0.3KW
Control Method	PLC control, touch screen operation
Station	Single station
Drive Mode	Servo motor drive
Sample clamping method	Mechanical clamping, adjustable clamping point position
Flexing Angle	0-90° optionally adjustable
Flexing Speed	0-30 times/min, variable frequency speed regulation
Bending times	0~999999 can be preset, the default is 10000 times
Loading Voltage	Load voltage 0-250V adjustable, current display
Sample judgment	Judgment based on the signal given by whether the current is conducting or not
